Active Power | UPS Systems | Single Module SystemsSingle Module Systems
up to 300 kVA

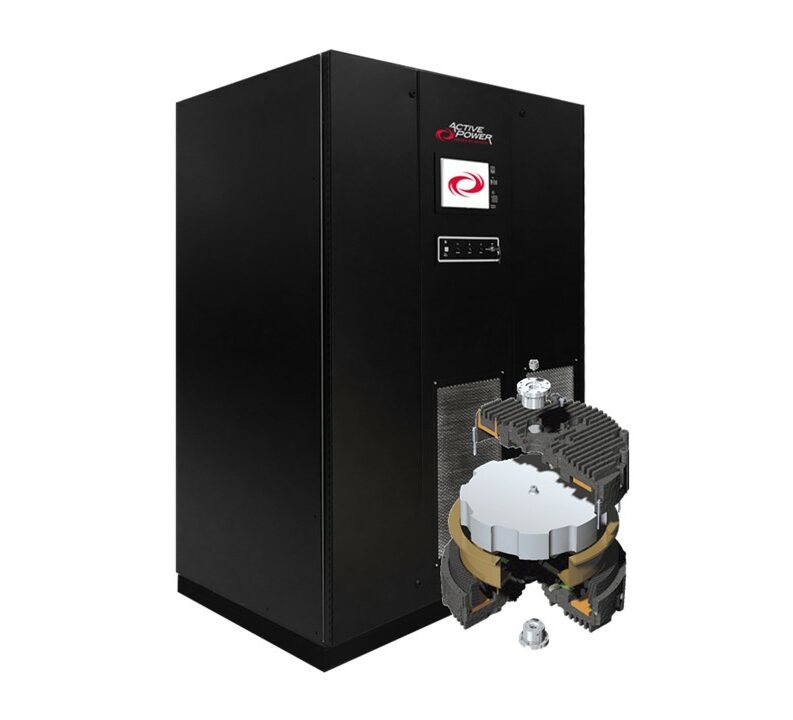

Active Power CleanSource® single module systems provide flywheel-based power conditioning and backup power for small data centers in the most compact footprint available.
For access to full guide specifications and product manuals, please contact us.
Single Module Systems
Product Specifications
UPS 150 UPS 300 UPS 300
(dual input)RATING Maximum kVA 150 300 300 Maximum kW 120 240 240 INPUT Voltage1 480 VAC 3-phase, 3-wire plus ground Voltage Range +10% / -15% (programmable) Frequency 60 Hz +/- 10% maximum (programmable)
+/- 3% (default)Power Factor 0.99 at rated load and nominal voltage Harmonic Current Distrotion Linear Load <3% at 100% load Non-Linear Load2 <8% at 100% load Current - Nominal (480 VAC) 152 299 302 Current - Max. Continuous 320 400 400 Current - Max. Non-Continuous 320 420 420 Surge Withstand Meets IEEE 587/ANSI C62.41 Walk-In 1 to 15 seconds (programmable) OUTPUT Voltage 480 VAC 3-phase, 3-wire plus ground Voltage Regulation Steady State +/-1% for +/-10% input Flywheel Mode +/-1% steady state Transient +/-1% within 50 mSec for 100% load step Voltage Distortion2 <3% linear loads and
<5% for 100% non-linear loadsFrequency 60Hz (mains synchronized)
(normal operation +/- 0.2% free running)Slew Rate Adjustable from 0.2Hz/second
to 3.0Hz/secondCurrent - Nominal (480 VAC) 181 361 361 Overload Capability-Mains Operation3 Continuous 10 Min 2 Min 30 Sec 10 mSec Up to 105% 125% 150% 200% >200% UPS Efficiency4 97% 98% 97% ENVIRONMENTAL Audible Noise <70 dBA at 1 meter Temperature Operating 32 to 104° F (0 to 40° C) Storage -13 to 158° F (-25 to 70° C) Humidity 5% to 95% (non-condensing) Altitude5 Up to 3,000 feet (914 meter) Emissions and Immunity FCC Class A, Subpart J of Part
15/ EN 62040-2Heat Rejection - Online4 kW 5.0 6.2 8.7 BTU/Hr 16,640 20,992 29,612 PHYSICAL DATA Height 78.0 in
1,981 mmWidth 58.6 in
1,488 mm82 in
2,082 mmDepth 34.0 in
865 mmWeight 4,900 lbs
2,223 kg4,900 lbs
2,223 kg5,500 lbs
2,495 kgCable Entry Top or Bottom SAFETY UL 1778 Listed
CUL CAN/CSA 22.2 No. 107.1 Listed(1) Optional 4-wire except for 300 dual input (2) EN 62040-3 (3) 150 overload capactiy max 10mSec > 150% (4) DC energy storage off-line (5) Derate operating temperature for higher elevations
